• Intel LGA 1155/1156 RCF94LPR-C5

Intel LGA 1155/1156 RCF94LPR-C5

COSTOMER:BCM COMPUTERS CO., LTD.
PART NO.: RCF94LPR-C5-04
PROJECT:BOX-RX61H-U (4170)
Q'TY:PCS


 Part Number :

RCF94LPR-C5

 Fan ( Per Fan )

9225(PWM)

 Sensor Temperature



 Operation Voltage

DC 10.2 ~ 13.8V

 Rated Voltage

DC12 V

 Input Current

0.25 A MAX.

 Input Power

3.00 W MAX.

 Bearing System

ELR

 Fan Speed(RPM)

2500 ±15% RPM

 Max. Air Delivery(CFM)

43.16 ± 15%CFM

 Noise Level

31.82 ±2dB(A)

 Fan Safety

UL Approved

 Fan with RPM signal output

YES

 Heatsink

 Dimension

§ 90*19.1 mm

 Material

Aluminum(6063)

 CLIP

 Material

Steel(K7)

 Thermal Interface

High thermal conductive interface

 Material

GW101

 Connector

CKM2510 4P(PWM)

 Wire Length

220±10 mm

 Total Weight

255 g

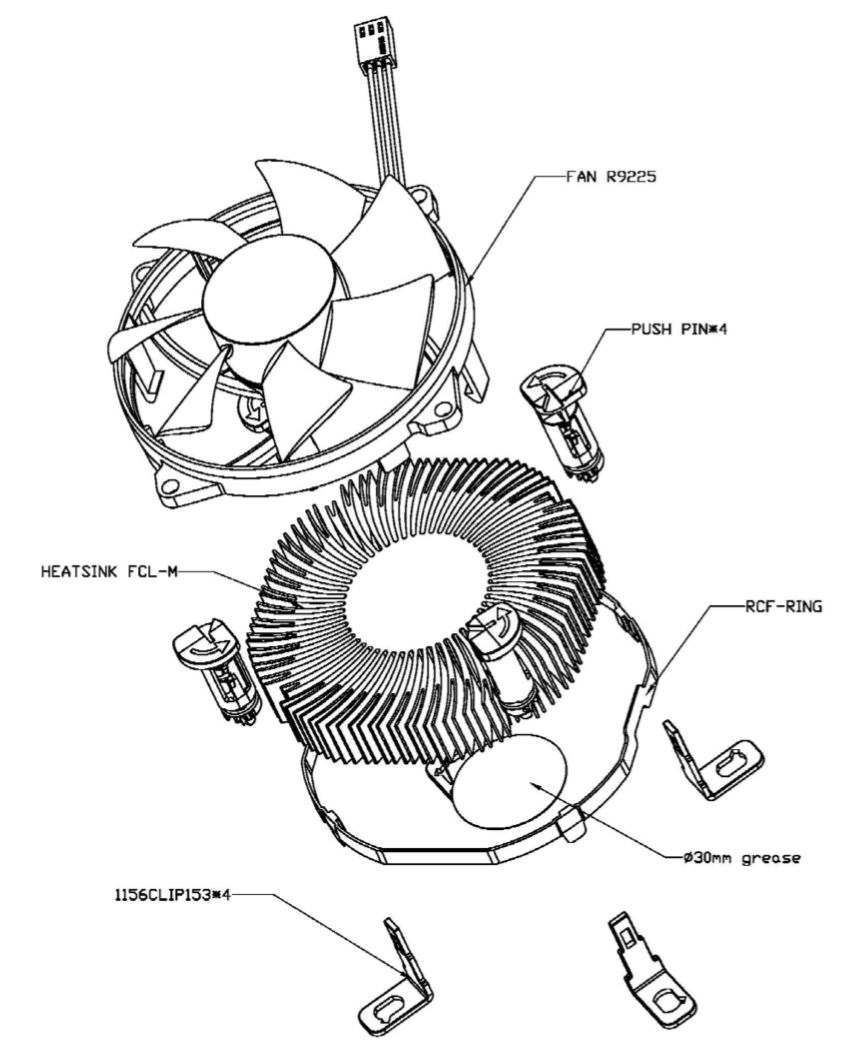

EXPLODER

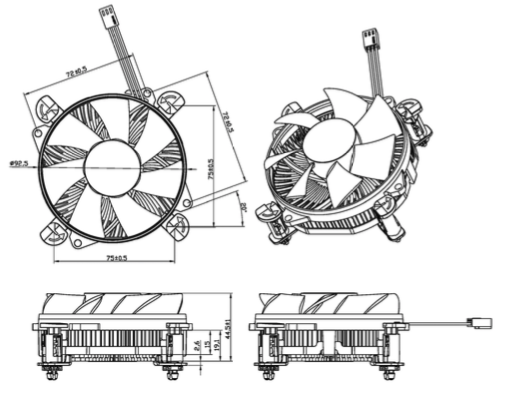

DIMENSION DRAWING

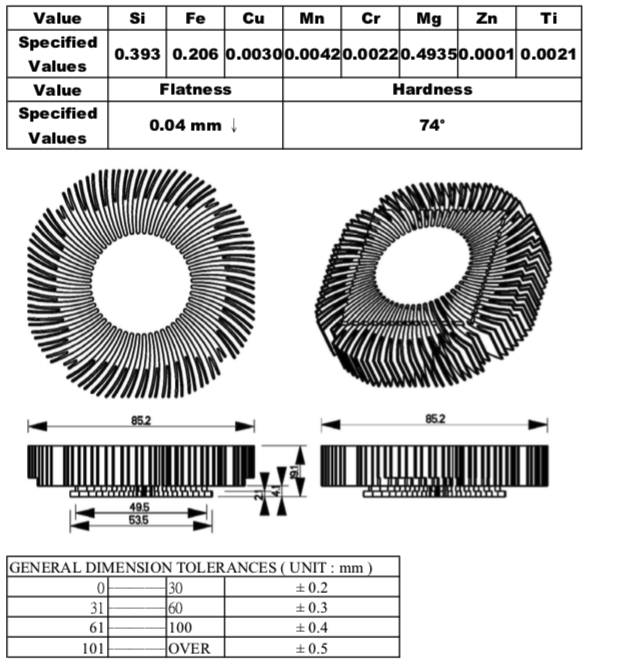

HEAT SINK

Material : Aluminum Alloy 6063T5

Chemistry Ingredient & Temper Designation : Aluminum(6063)


FAN

 Specification

ELR

 Dimensions

92 * 92 * 25 mm

 Rated Speed

2500 ± 15 % RPM

 Air Flow

43.16± 15 %CFM

 Noise Level

31.82±2dB(A)

 Rated Voltage

DC12V

 Operating Voltage Range

DC 10.2- 13.8 V

 Housing / Fan Blade

 UL: 94V-0 Rating+Fibre Glass

 Max Air-Pressure

2.74 ± 15% mmH20

 Input CuiTent

0.25 A MAX.

 Input Power

3.00 W MAX.

 Direction of Rotation

 Clockwise,Air Discharged

 Life Expectancy (LIO at 45°C)

 60,000 Hours normally continuous operating

 Lead wire

                           "+ POSITIVE--RED"

 UL 1007 #26AWG "- NEGATIVE-----BLACK"

                           "SENSOR OUTPUT(FG)--YELLOW(3ld WIRE)"

                           "SENSOR OUTPUT(PWM)--BLUE(4th WIRE)"

 Operating Temperature

 -10 TO +70°C

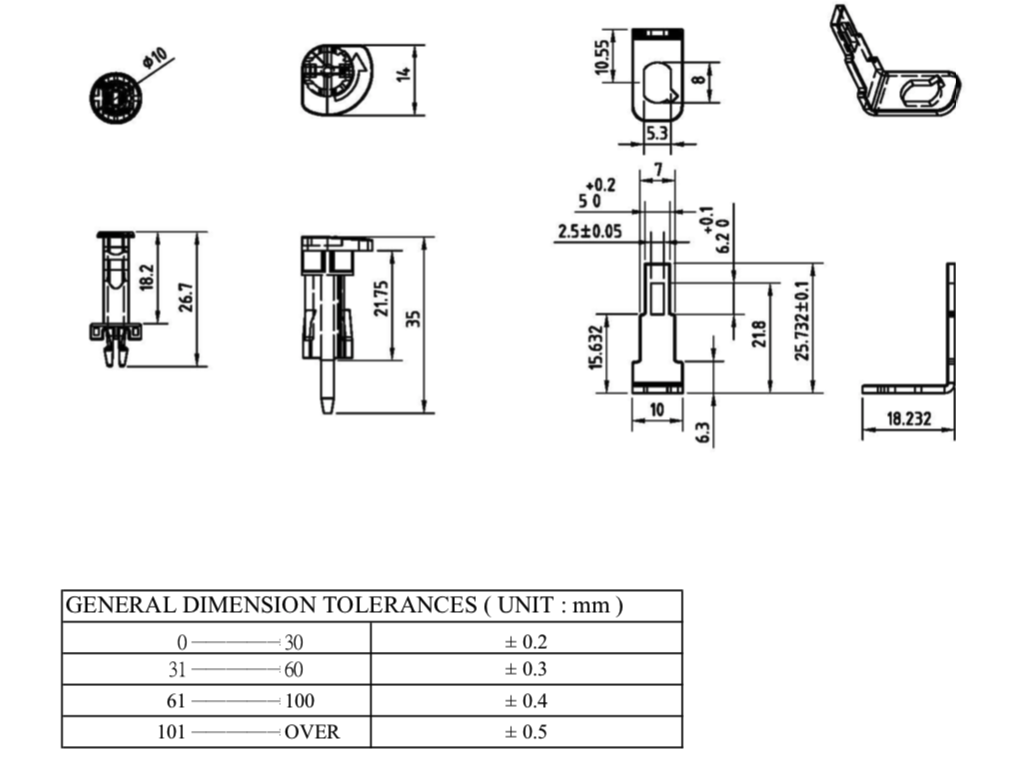

CLIP

Material : Steel(K7) & Plastic

Physical Characteristics

Itam

Finish

Hardness

Thickness

Stainless

Hard Finished

163 178°

0.8 0.02 mm

VALUE

C

Si

         Mn

P

S

Cr

Ni

V



0.65

0.21

0.39

0.009

0.005

0.14

0.02

0.02



THERMAL PASTE

Model Type : SILICONE HEAT SINK PAST GW101


 COLOR

 WHITE

 BULK PENETRATION

 210260

 SPECIFIC GRAVITY

 2.3 at 25°C

 VOLATILE MATTER

 after 41V200°C below 0.5°C

 BLEED

 after 41V200°C on vertical surface no bleeding

 DIELECTRIC STRENGTH

 1.2kv at 0.1mm , ASTM D-149

 VOLUME RESISTIVITY

 1*10 ohin-cm , ASTM D-257

 THERMAL CONDUCTIVITY

 0.0015 Kcal/cm/sec/°C or 0.63 w/m/°C


LABAL

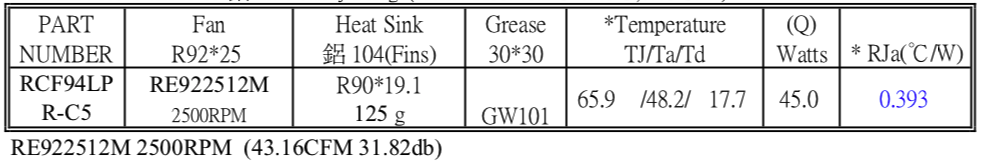

TEST REPORT


Date : 2010/6/21

MODEL : RCF94LPR・C5 Intel Sandy Eridge(socket 1155/48.2°C・69.8°C,0.48°C/W)


Rja: Thermal Resistance From Junction To Ambient
Tj
: simulate CPU junction temperature

Ta: Ambient temperature at inlet of fan

Td: Temperature Differnce (Td=Tj-Ta)

Heater: Heater To Simulate CPU

Space: Close

Time: 2H.
